Variable Speed Stepless Mixers (Electric)

Variable Speed Stepless Mixers (Electric)

$0.00 USD
$0.00 USD
Sale Sold out

Email info@midwestmixing.com to order or click here to request a quote.

Product Details:

  • Operate from 60 cycle AC Source
  • Direct drive or Geared drip proof, totally enclosed, or explosion proof
  • Miniaruized, Solid State, Electronic Control
  • Wide Speed Range
  • Full Rated Torque at All Speeds

These portable mixers have the same proven components as our constant speed mixers. - A firm mounting assembly with rapid acting universal ball and socket swivel clamp, adjustable through 360 degrees in a horizontal plane, tilts back 100 degrees to clear tank. Broad clamp face to grip tank edge. Accurate sleeve coupling. Precision shafting. Balanced, high performance propellers. Geared models offer heavy duty gears and wide bearing span for shaft support.

MOTORS   Shunt wound continuous duty, DC motors are used. Totally enclosed and explosion proof motorshave a 75 degree C rise above ambient at full load, and Class B Insulation. 120 volts in fractional sizes, and 120 or 240 volts integral.

CONTROLS   For the ultimate in speed control, a shunt wound motor with a full wave transistorized silicon rectifier is used. These provide full range speed from 0 to 1725 RPM, or 0 to 430 RPM in the geared models, with full rated torque over the whole range. Where constant pre-set speed under varying load is desired, this combination is suggested. Protected against overload.

Full wave controls with various features, for operation from 230 volt, 60 cy., 3 phase current supply, require separate rectifier assembly in wall mounted cabinet. Attached or remote operator station, any enclosure. Higher voltages reduceable by transformer.

Variable speed drives are available for vertical flange mounted or side entering mixers to 75 horse power.

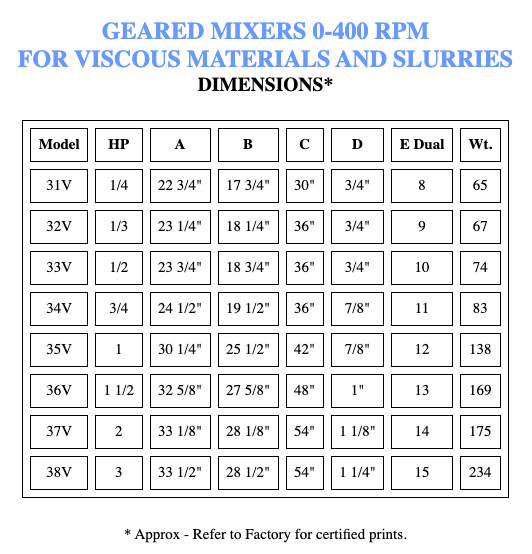

GEARED MIXERS 0-400 RPM
FOR VISCOUS MATERIALS AND SLURRIES

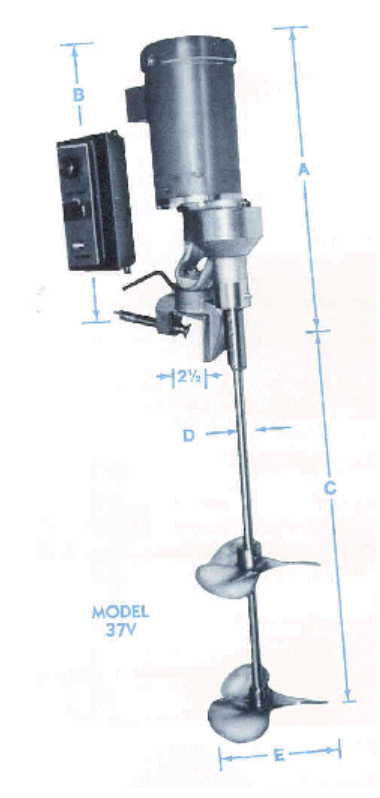

DIMENSIONS*
Model HP A B C D E Dual Wt.
31V
1/4
22 3/4"
17 3/4"
30"
3/4"
8
65
32V
1/3
23 1/4"
18 1/4"
36"
3/4"
9
67
33V
1/2
23 3/4"
18 3/4"
36"
3/4"
10
74
34V
3/4
24 1/2"
19 1/2"
36"
7/8"
11
83
35V
1
30 1/4"
25 1/2"
42"
7/8"
12
138
36V
1 1/2
32 5/8"
27 5/8"
48"
1"
13
169
37V
2
33 1/8"
28 1/8"
54"
1 1/8"
14
175
38V
3
33 1/2"
28 1/2"
54"
1 1/4"
15
234


* Approx - Refer to Factory for certified prints.

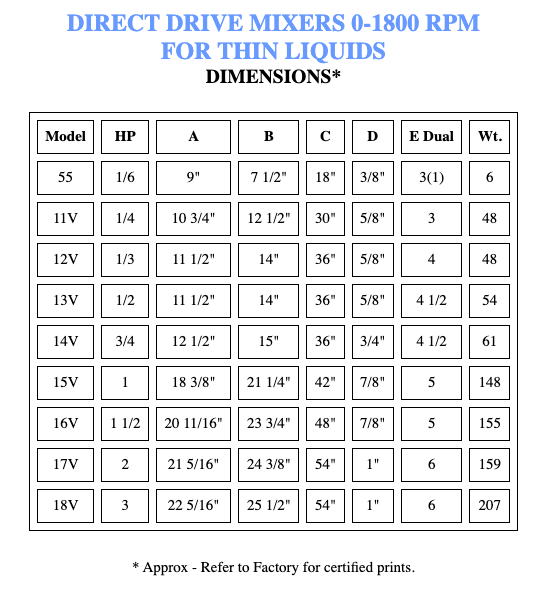

DIRECT DRIVE MIXERS 0-1800 RPM
FOR THIN LIQUIDS
DIMENSIONS*

Model HP A B C D E Dual Wt.
55
1/6
9"
7 1/2"
18"
3/8"
3(1)
6
11V
1/4
10 3/4"
12 1/2"
30"
5/8"
3
48
12V
1/3
11 1/2"
14"
36"
5/8"
4
48
13V
1/2
11 1/2"
14"
36"
5/8"
4 1/2
54
14V
3/4
12 1/2"
15"
36"
3/4"
4 1/2
61
15V
1
18 3/8"
21 1/4"
42"
7/8"
5
148
16V
1 1/2
20 11/16"
23 3/4"
48"
7/8"
5
155
17V
2
21 5/16"
24 3/8"
54"
1"
6
159
18V
3
22 5/16"
25 1/2"
54"
1"
6
207
