Air Driven Stirrers

Email info@midwestmixing.com to order or click here to request a quote.

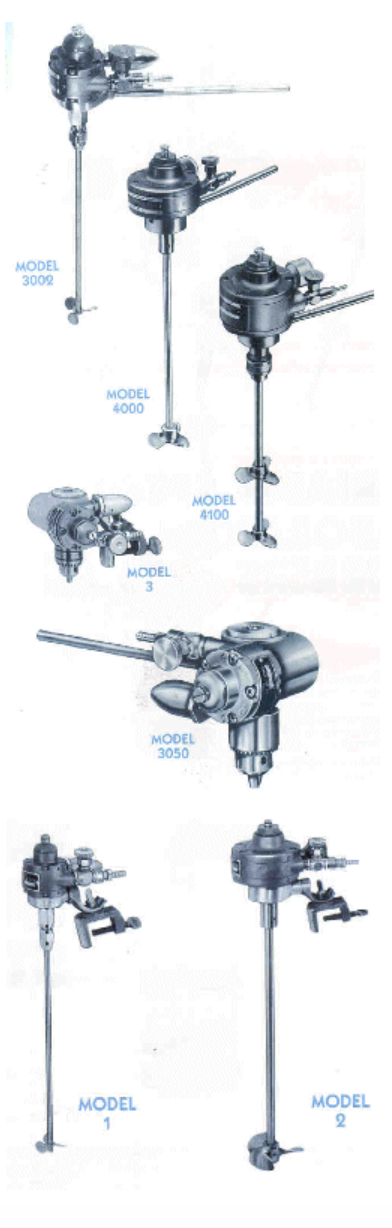

MODEL 3002   Stirrer, air driven, 1/6 horse power, 0 to 6000 rpm, with needle valve speed control and tubing connector, silencer, corrosion resistant chuck. 12 inch shaft and 2 inch diameter propeller are of stainless steel. Motor diameter, 2 ½". Weight, 3 lbs. Maximum free air consumption, 7.6 cfm at 80 lbs. input pressure.

MODEL 4000   Stirrer, air driven, 1/2 horse power, 0 to 2000 rpm, with speed control valve, tubing connector, silencer, ½" capacity corrosion resistant collet chuck; stainless steel shaft, ½" x 15"; stainless steel propeller, 3 inch diameter. Motor diameter, 4". Wt. 8 lbs. Maximum free air consumption, at 80 lbs. input pressure, 13.5 cfm.

MODEL 4100   Stirrer, as above, but 1 HP, 3" propellers. Wt. 10 lbs. 25 cfm.

MODEL 3050   Stirrer, air driven, geared for viscous materials, 1/6 HP, 0 to 600 rpm, with needle valve speed control, tubing connector, silencer, 3/8 inch capacity three jaw chuck.

MODEL 3   Geared air-driven stirrer for viscous or colloidal materials, heavily loaded liquids, or where slow speed is desirable. 1/6 hp air motor 0 to 600 rpm. 3/8" capacity jaw chuck. Same motor as Model 1, but geared down 1 to 5. Weight 6 lbs.

MODEL 1   1/6 HP 0-6000 RPM. Similar to Model 3002, but equipped with a mounting clamp.

MODEL 2   ½ HP-2000 RPM. Similar to Model 4000, except equipped with shaft held in sleeve by set screws.
