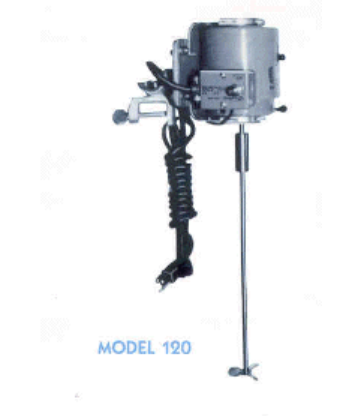

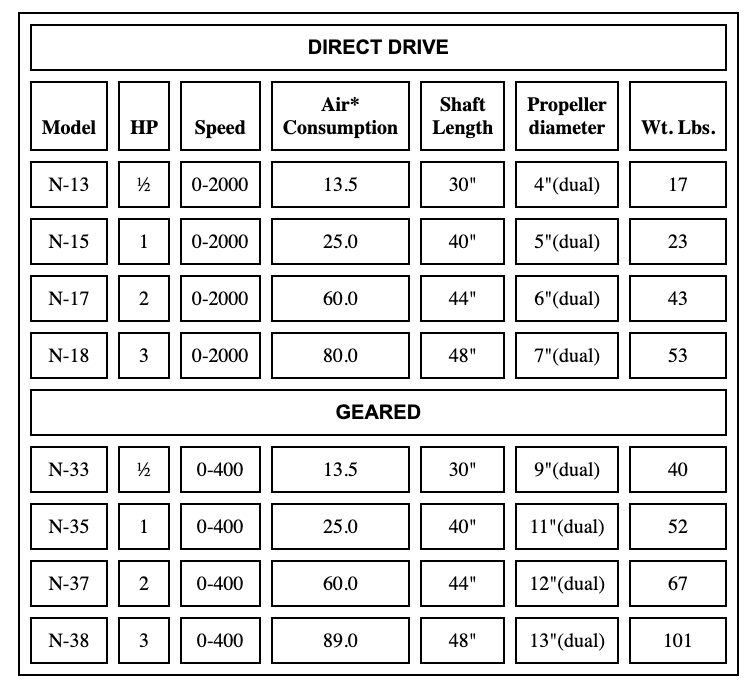

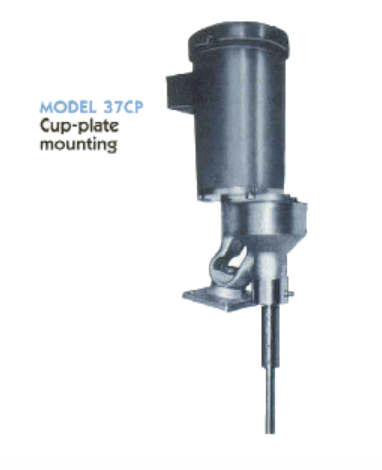

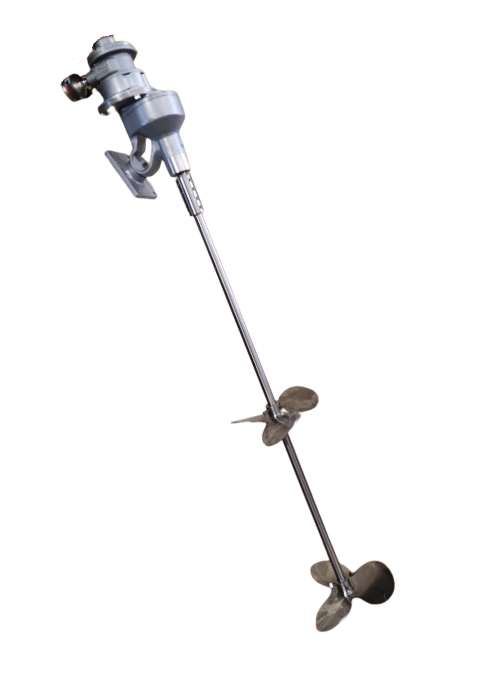

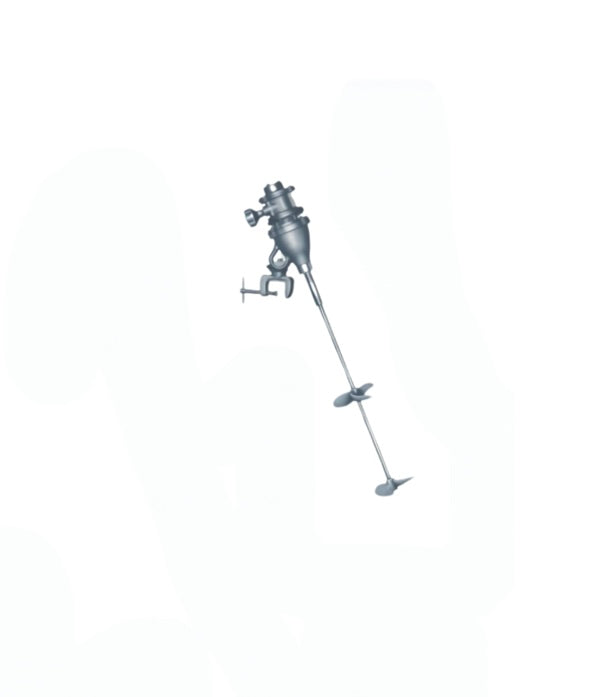

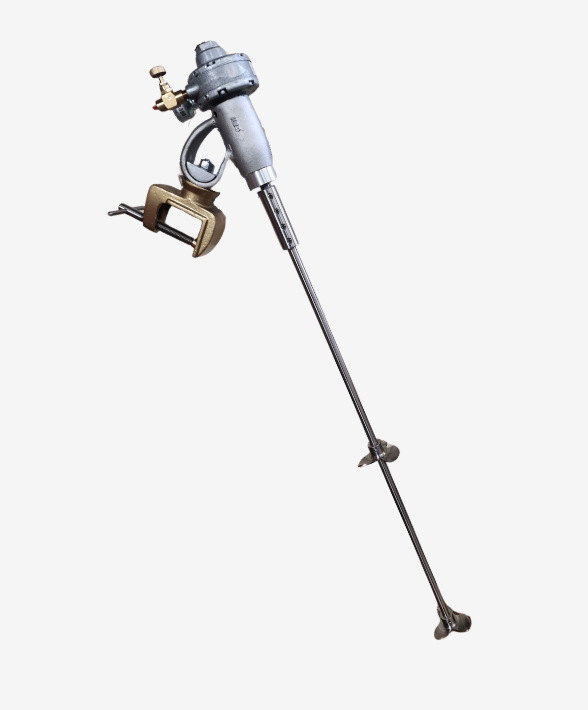

Portable air-driven mixers, clamp mounted. Direct Drive (0-2000 RPM) or Geared (0-500 RPM). Explosion-proof and variable speed. Mount can be cup-plate upon request. Pilot Plant and Production Mixers.
PORTABILITY MIXM Portable Mixers are truly portable. They weigh as little as possible without compromising quality. Design throughout is to assure ease of handling.
BALANCE MIXM Mixers are well balanced. Steels selected for shafts assure highest straightness factor and concentricity. Shaft diameter and length is chosen to assure optimum performance within critical speed limits. The center of gravity is located above clamp cup for ease in changing position of mixer or changing angle of shaft.
WIDE BEARING SPAN Wide bearing span permits use of a longer unsupported shaft without incurring vibration. In all models, direct drive and geared, output shaft is supported by double sealed ball bearings, the lower bearing being protected by an additional shaft seal.
MOTOR NEMA standard, continuous duty, ball bearing motors. All enclosures, any current, voltage, etc.

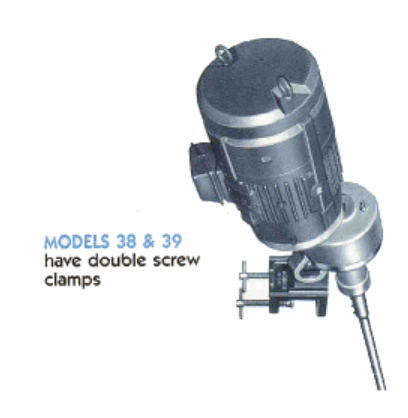

UNIVERSAL CLAMP The MIXM Universal Clamp design has long proved popular for its efficiency and simplicity. Tough manganese bronze. Wide seat and face. Ball and socket rotates 360° horizontally - 90° tilt. Lock releases instantly - locks instantly - will not loosen unless released.
SHAFT COUPLING Shaft coupling is sleeve type for accuracy and snug fit. Shaft held in coupling by set screws which seat against flat surfaces on shaft.
CONSTRUCTION MATERIALS Couplings, shafts and propellers can be supplied in carbon steel or stainless steels or other alloys. These parts can also be supplied coated if desired.
PROPELLERS Accepted design for maximum mixing action. All propellers well balanced to eliminate vibration.
ENGINEERING MIXM engineers have had broad experience in the design and application of mixers. We welcome the opportunity to work with manufactures in solving mixing problems.
